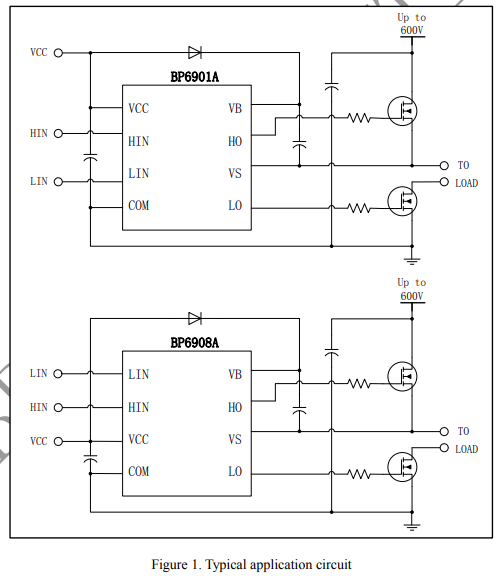

The BP6901A/BP6908A is a high voltage, high speedhalf-bridge pre-driver for power MOSFET and IGBT.It has inputs for both high side and low side, and twooutput channels with internal dead time to avoidcross-conduction. The input logic level is compatible with 3.3V/5V/15Vsignal. The floating high side channel can drive a Nchannel power MOSFET or IGBT up to 600V.

Floating channel operation up to 600V

Robust at negative transient voltage

Gate drive supply range from 10V to 20V

3.3V, 5V and 15V input logic compatible

UVLO for both high side and low side

Built-in 100ns dead time

Available in SOP8 package
