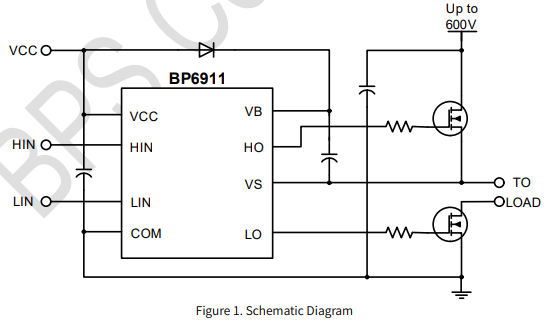

The BP6911 is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT. It has inputs for both high side and low side, and two output channels with internal dead time to avoid cross-conduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high side channel can drive a N-channel power MOSFET or IGBT up to 600V.

Floating channel operation up to 600V

Robust at negative transient voltage

Gate drive supply range from 10V to 20V

3.3V, 5V and 15V input logic compatible

UVLO for both high side and low side

Built-in 100ns dead time

Available in SOP8 package

• H-bridge
• Inverters

•
