BP8705D

Less than 75 mW no-l

样品申请

简述
优势
利用领域

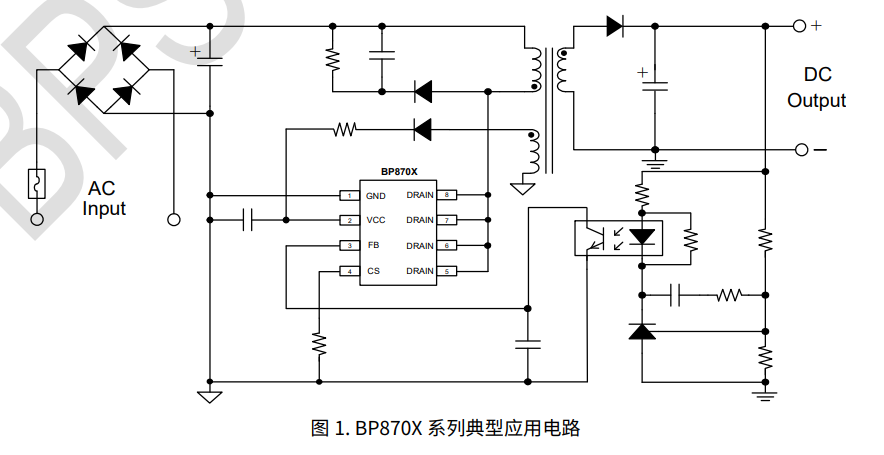

典型利用道理图

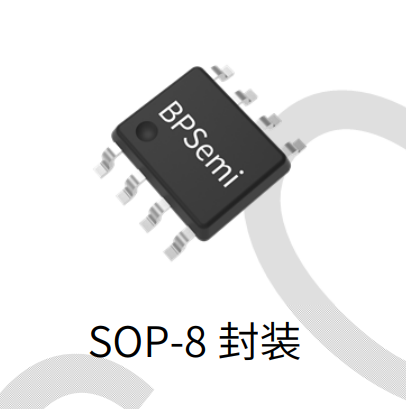

封装
技术文档
有关文章
返回

简述

The BP870X family is a series of highly integratedcurrent mode PWM switcher ICs with highperformance, low standby consumption suitable fordesigning flyback converters up to 25 W. The BP870X integrates a 650 V power MOSFET and ahigh-voltage current source which eliminates thestartup resistors.lt supports CCM and DCM operations.

优势

Less than 75 mW no-load

consumptionIntegrated 650 V power MOSFET

High-voltage current source eliminates startup resistors

Internal 4 ms soft start

Fixed 65 kHz frequency at heavy load

Green mode at light load

利用领域
